Spring transaction isolation level tutorial

31 January 2013
tags: txspringjava
In this tutorial you will learn about the transaction isolation level provided by the Spring framework.

1. Introduction

Transaction isolation level is a concept that is not exclusive to the Spring framework. It is applied to transactions in general and is directly related with the ACID transaction properties. Isolation level defines how the changes made to some data repository by one transaction affect other simultaneous concurrent transactions, and also how and when that changed data becomes available to other transactions. When we define a transaction using the Spring framework we are also able to configure in which isolation level that same transaction will be executed.

2. Usage example

Using the @Transactional annotation we can define the isolation level of a Spring managed bean transactional method. This means that the transaction in which this method is executed will run with that isolation level:

Isolation level in a transactional method
@Autowired
private TestDAO testDAO;

@Transactional(isolation=Isolation.READ_COMMITTED)
public void someTransactionalMethod(User user) {

  // Interact with testDAO

}

We are defining this method to be executed in a transaction which isolation level is READ_COMMITTED. We will see each isolation level in detail in the next sections.

3. READ_UNCOMMITTED

READ_UNCOMMITTED isolation level states that a transaction may read data that is still uncommitted by other transactions. This constraint is very relaxed in what matters to transactional concurrency but it may lead to some issues like dirty reads. Let's see the following image:

Dirty read
Transaction isolation level dirty read

In this example Transaction A writes a record. Meanwhile Transaction B reads that same record before Transaction A commits. Later Transaction A decides to rollback and now we have changes in Transaction B that are inconsistent. This is a dirty read. Transaction B was running in READ_UNCOMMITTED isolation level so it was able to read Transaction A changes before a commit occurred.

Note: READ_UNCOMMITTED is also vulnerable to non-repeatable reads and phantom reads. We will also see these cases in detail in the next sections.

4. READ_COMMITTED

READ_COMMITTED isolation level states that a transaction can't read data that is not yet committed by other transactions. This means that the dirty read is no longer an issue, but even this way other issues may occur. Let's see the following image:

Non-repeatable read
Transaction isolation level repeatable read

In this example Transaction A reads some record. Then Transaction B writes that same record and commits. Later Transaction A reads that same record again and may get different values because Transaction B made changes to that record and committed. This is a non-repeatable read.

Note: READ_COMMITTED is also vulnerable to phantom reads. We will also see this case in detail in the next section.

5. REPEATABLE_READ

REPEATABLE_READ isolation level states that if a transaction reads one record from the database multiple times the result of all those reading operations must always be the same. This eliminates both the dirty read and the non-repeatable read issues, but even this way other issues may occur. Let's see the following image:

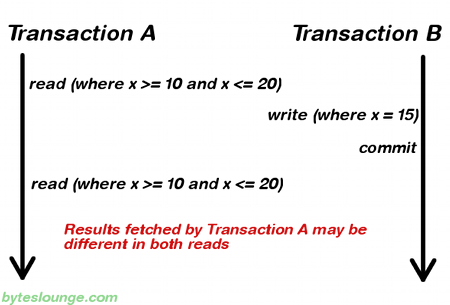

Phantom read
Transaction isolation level phantom read

In this example Transaction A reads a range of records. Meanwhile Transaction B inserts a new record in the same range that Transaction A initially fetched and commits. Later Transaction A reads the same range again and will also get the record that Transaction B just inserted. This is a phantom read: a transaction fetched a range of records multiple times from the database and obtained different result sets (containing phantom records).

6. SERIALIZABLE

SERIALIZABLE isolation level is the most restrictive of all isolation levels. Transactions are executed with locking at all levels (read, range and write locking) so they appear as if they were executed in a serialized way. This leads to a scenario where none of the issues mentioned above may occur, but in the other way we don't allow transaction concurrency and consequently introduce a performance penalty.

7. DEFAULT

DEFAULT isolation level, as the name states, uses the default isolation level of the datastore we are actually connecting from our application.

8. Summary

To summarize, the existing relationship between isolation level and read phenomena may be expressed in the following table:

  dirty reads non-repeatable reads phantom reads
READ_UNCOMMITTED yes yes yes
READ_COMMITTED no yes yes
REPEATABLE_READ no no yes
SERIALIZABLE no no no

9. JPA

If you are using Spring with JPA you may come across the following exception when you use an isolation level that is different the default:

InvalidIsolationLevelException: Standard JPA does not support custom isolation levels - use a special JpaDialect for your JPA implementation
at org.springframework.orm.jpa.DefaultJpaDialect.beginTransaction(DefaultJpaDialect.java:67)
at org.springframework.orm.jpa.JpaTransactionManager.doBegin(JpaTransactionManager.java:378)
at org.springframework.transaction.support.AbstractPlatformTransactionManager.getTransaction(AbstractPlatformTransactionManager.java:372)
at org.springframework.transaction.interceptor.TransactionAspectSupport.createTransactionIfNecessary(TransactionAspectSupport.java:417)
at org.springframework.transaction.interceptor.TransactionAspectSupport.invokeWithinTransaction(TransactionAspectSupport.java:255)
at org.springframework.transaction.interceptor.TransactionInterceptor.invoke(TransactionInterceptor.java:94)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:172)
at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:204)

To solve this problem you must implement a custom JPA dialect which is explained in detail in the following article: Spring - Change transaction isolation level example.
